Warm Aluminum Windows and Doors

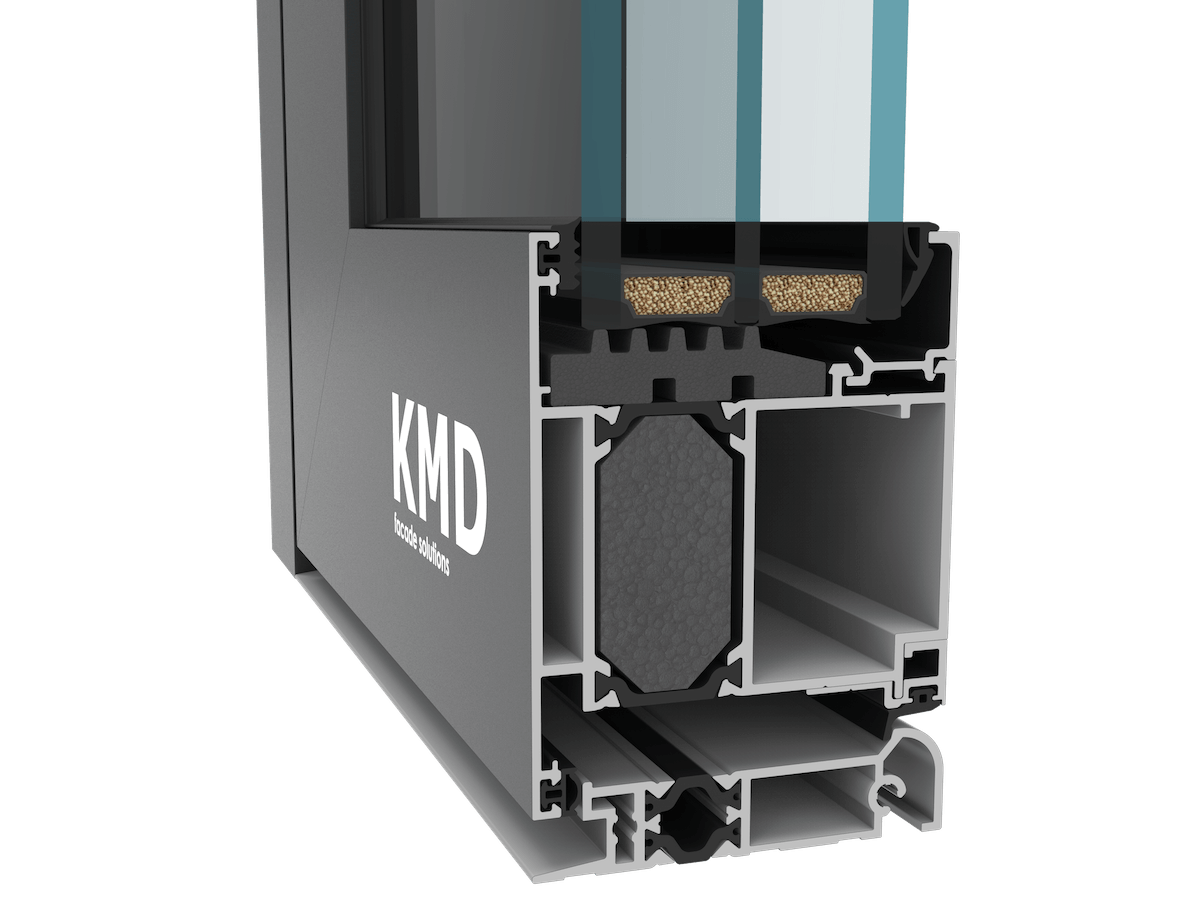

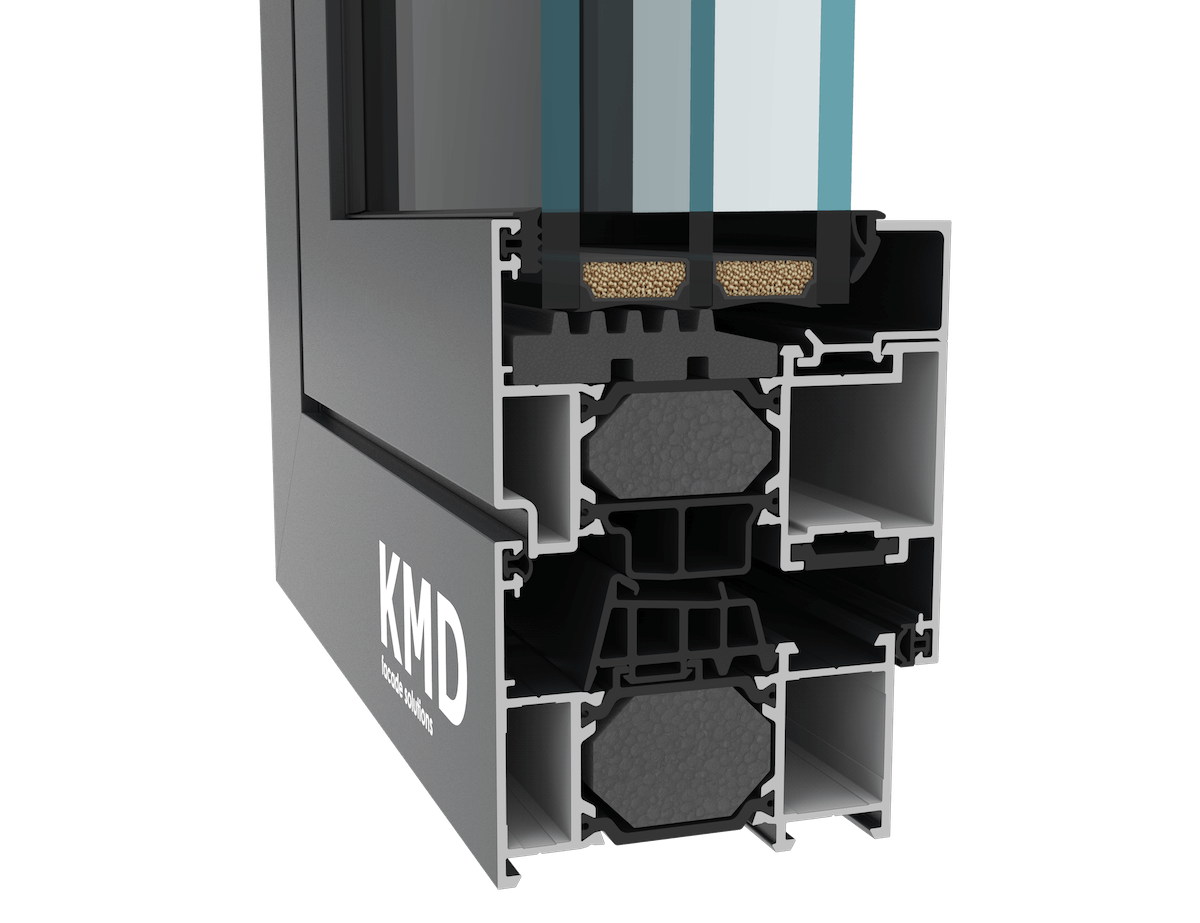

The KMD.78 system is a thermally insulated series of aluminum profiles with a frame depth of 70 mm and a sash depth of 78.4 mm. It is designed for manufacturing window, door, and curtain wall structures of various configurations that meet strict thermal and acoustic insulation standards. Exceptional thermal performance, airtightness, and soundproofing are achieved through multi-chamber polyamide thermal breaks, foamed insulation inserts, and EPDM gaskets. The system allows for the integration of flush (coplanar) glazing beads in window sashes. Infill options—such as insulated glass units (IGUs) or solid panels—are placed on plastic glazing blocks and secured with glazing beads via an internal wedge gasket. The system accommodates infill thicknesses ranging from 22 to 60 mm for windows and from 14 to 52 mm for doors.

Key Advantages of KMD.78:

  • High Strength-to-Weight Ratio: Engineered to be exceptionally robust while maintaining a relatively low structural weight.
  • Outstanding Longevity: Highly durable with an operational lifespan exceeding 70 years, retaining all mechanical properties and performance characteristics throughout.
  • Weather Resistance: Resilient against high humidity levels and severe temperature fluctuations ranging from -50°C to +50°C.
  • UV Resistance: Highly stable and protected against degradation from ultraviolet radiation.
  • Non-Combustible: Fire-safe material that significantly enhances the overall fire safety of the premises.
  • Eco-Friendly and Sustainable: Completely safe, non-toxic, and environmentally responsible, emitting no hazardous substances.
  • Superior Sealing Performance: Enhanced airtightness, thermal efficiency, and acoustic performance achieved through a dual-contour rebate sealing system.
  • Installation Flexibility: Streamlined and adaptable assembly allows for the creation of structures in a vast array of shapes, sizes, colors, and types. This empowers architects to bring the boldest design concepts to life and deliver a harmonious aesthetic.
  • Advanced Energy Efficiency: Features high-performance energy-saving characteristics that effectively maintain the desired indoor climate during both winter and summer.
